Upper cabinet doors: top corner. Lower cabinet doors: bottom corner. Drawers: centred. The rules are simple once you know them — and the exceptions are worth understanding.
Cabinet knob and pull placement is one of those things where there is a correct answer — not a preference, not a suggestion, but a standard that designers and millworkers follow because it works. Once you know the rules, you can apply them across an entire kitchen or bathroom in minutes. And once you understand why the rules exist, you will know exactly when it is okay to break them.

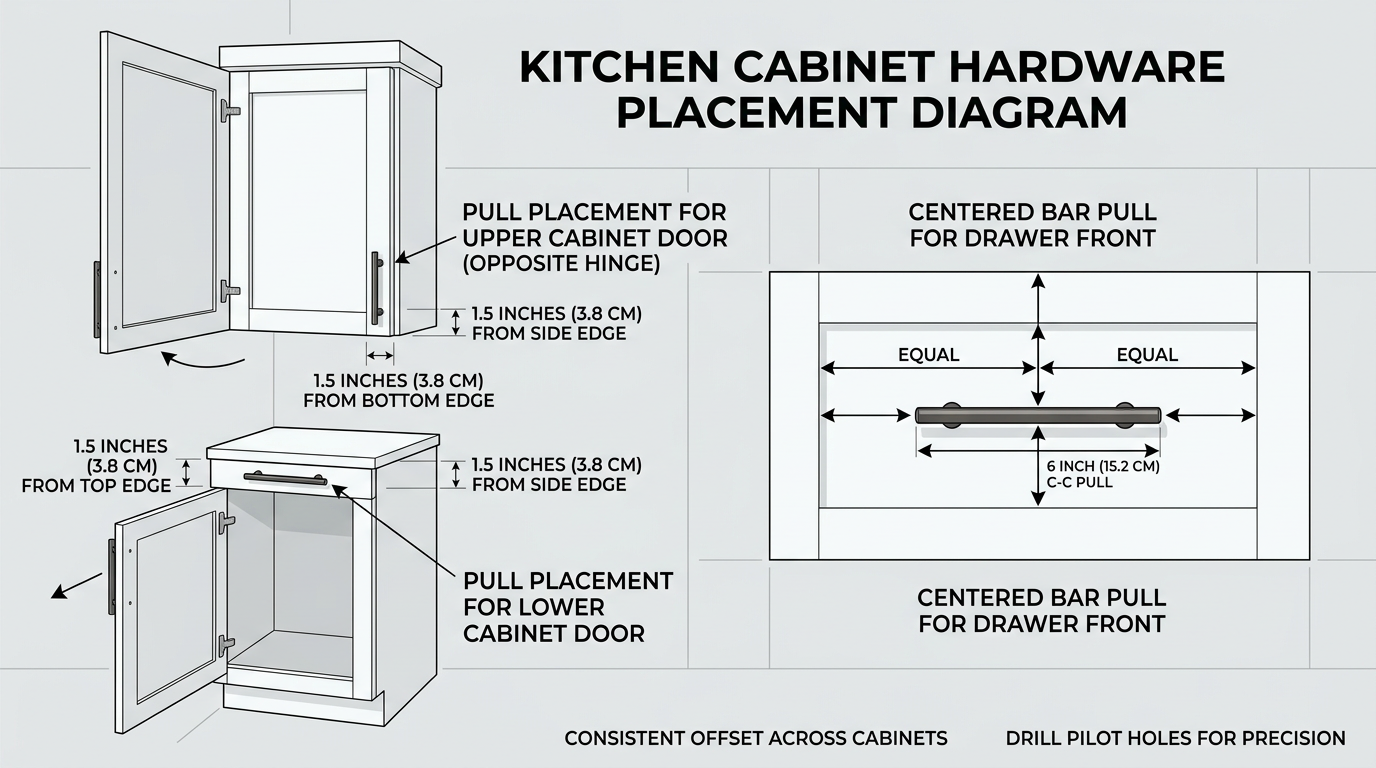

The standard placement rules
Upper cabinet doors: top corner
On upper cabinet doors that open by pulling downward and toward you, the knob or pull goes in the top corner on the pull side — the side opposite the hinge. For a door hinged on the left, the knob goes in the top right. For a door hinged on the right, the knob goes in the top left.
The reason is ergonomic: when you reach for an upper cabinet, your hand naturally rises and comes in slightly below the top of the door. The knob at the top corner meets your hand where it wants to be.
Standard inset from the corner: 2" to 3" from the top edge, 2" to 3" from the side edge. Most designers land at 2-1/2" from each edge as the default.
Lower cabinet doors: bottom corner
On lower cabinet doors, the knob or pull goes in the bottom corner on the pull side — the corner diagonally opposite from the top-corner rule for upper cabinets.
Again, ergonomics: when you reach for a lower cabinet, your hand drops and comes in slightly above the bottom of the door. Placing the hardware at the bottom corner means you do not have to bend as far.
Standard inset: same as upper cabinets — 2" to 3" from the bottom edge, 2" to 3" from the side edge.
Drawers: centred
Pulls on drawers are centred both horizontally and vertically on the drawer face. For a single knob on a narrow drawer, centre it. For a bar pull, centre it horizontally and position it vertically in the centre of the face or very slightly above centre (one-third down from the top is a common alternative for taller drawer faces).
The horizontal centre is non-negotiable — an off-centre drawer pull looks like an installation error, not a design choice. The vertical position has more flexibility depending on the drawer height and the pull style.
Tall pantry and linen cabinet doors
For very tall doors — pantry cabinets, linen towers, floor-to-ceiling storage — the standard top-corner or bottom-corner rules often feel awkward because the door is so tall that neither corner is at a natural hand height. In these cases, place the pull at approximately mid-height on the door, on the pull side. The exact height should place the pull at roughly 36" to 44" from the floor — comfortable for most adults without bending or reaching.
Double-door cabinets
On cabinets with two doors that meet in the centre, each door gets its own hardware positioned at the inner edge (toward the centre) rather than the outer edge. This means both pulls end up adjacent to each other at the centre seam, which makes it easy to pull both doors open simultaneously and looks intentional rather than scattered.
Using pulls instead of knobs: does placement change?
The rules for bar pulls and cup pulls follow the same logic as knobs, but with one adjustment: a pull has length, so you position it so the centre of the pull is at the standard corner position, not the end. A 4" pull centred at 2-1/2" from the corner will extend both above and below (or inward and outward) from that centre point. Confirm that the full length of the pull does not overhang the edge of the door.
When to break the rules
The standard placement rules exist to solve an ergonomic and aesthetic problem in the most reliable way. You can break them intentionally when:
- You are using a very long bar pull that spans most of the door width — in this case, centring it vertically on the door and letting it run horizontally is both practical and looks deliberate.
- You want a modern, graphic look — some designers place pulls centred vertically on all doors (upper and lower) for a consistent horizontal band across the whole cabinet run.
- The door has a distinctive panel detail — align the hardware to the panel geometry rather than the corner rule.
Intentional rule-breaking reads as a design decision. Accidental inconsistency reads as a mistake. The difference is planning.
Tools and templates
If you are installing cabinet hardware yourself, a cabinet hardware jig is worth every penny. It drills consistent holes at whatever spacing and inset you choose, eliminates measuring errors, and keeps every pull at exactly the same position across all cabinets. The most common jig formats allow you to set the corner inset once and repeat it across every door and drawer in the kitchen.
